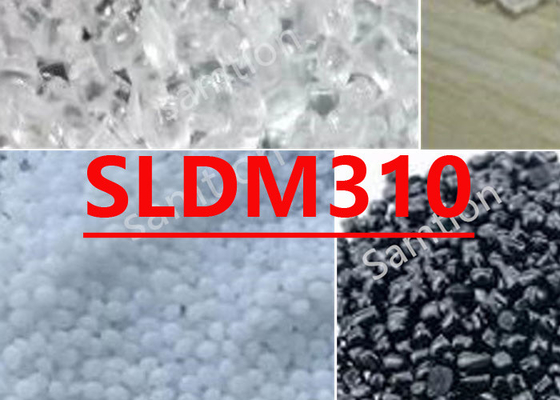

S-Plastics Lexan SLDM310 resin is Mineral filled Antistatic Polycarbonate, HDT100degC type
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 10 mm/min | 53 | MPa | S-Plastics - Japan Method |
| Tensile Stress, brk, Type I, 10 mm/min | 53 | MPa | S-Plastics - Japan Method |
| Tensile Strain, yld, Type I, 10 mm/min | 190 | % | S-Plastics - Japan Method |
| Tensile Strain, brk, Type I, 10 mm/min | 190 | % | S-Plastics - Japan Method |
| Tensile Modulus, 5 mm/min | 2660 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 84 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2500 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 55 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 55 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 66 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 66 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2670 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 82 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2650 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 108 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 73 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 0 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 0 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 9 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 117 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 108 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 0.E+00 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 0.E+00 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 0.E+00 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 0.E+00 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 116 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 0 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 100 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.29 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/2.16 kgf | 20.8 | g/10 min | ASTM D 1238 |
| Density | 0 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.44 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0 | % | ISO 62 |
| Melt Volume Rate, MVR at 260°C/2.16 kg | 16 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:01/09/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 240 - 260 | °C |
| Nozzle Temperature | 230 - 260 | °C |
| Front - Zone 3 Temperature | 230 - 260 | °C |
| Middle - Zone 2 Temperature | 220 - 255 | °C |
| Rear - Zone 1 Temperature | 220 - 245 | °C |
| Mold Temperature | 30 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.38 - 0.76 | mm |
| Source GMD, last updated:01/09/2007 | ||
|
