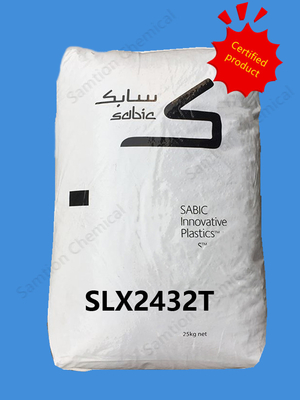

S-Plastics Lexan PC SLX2432T Description
Medium viscosity PC copolymer with enhanced UV stabilization and added release agent. V2 rated. Available in transparent and tinted colors.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 67 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 72 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 110 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2550 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2600 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 700 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 98 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 77 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -40°C | 85 | J | ASTM D 3673 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 135 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 130 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 118 | °C | ASTM D 648 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 130 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 116 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.12 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 10 | g/10 min | ASTM D 1238 |
| Density | 1.2 | g/cm³ | ISO 1183 |
| OPTICAL | Value | Unit | Standard |
| Light Transmission | 84 | % | ASTM D 1003 |
| Haze | 0.8 | % | ASTM D 1003 |
| Refractive Index | 1.59 | - | ASTM D 542 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-2 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1.6 | mm | IEC 60695-2-12 |
| Oxygen Index (LOI) | 38 | % | ISO 4589 |
| UV-light, water exposure/immersion | F1 | - | UL 746C |
| Source GMD, last updated:05/19/2006 | |||
|
For more information please see below |
|
|
S-Plastics lexan polycarbonate SLX2432T.pdf |
|
