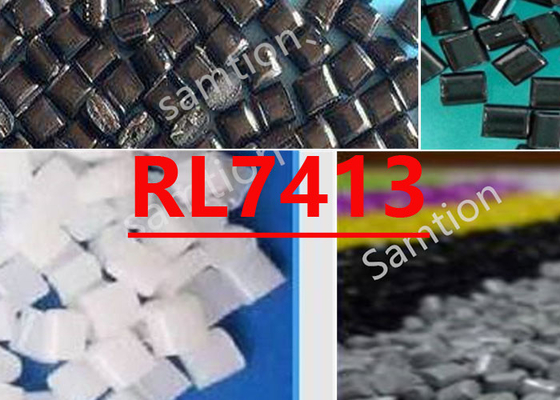

S-Plastics Lexan RL7413resin isWill be commercialized as ML7669. SINGLE LOT DATA. Optical disks.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 50 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 40 | % | ASTM D 638 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2220 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 480 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 36 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 121 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Source GMD, last updated:10/13/1998 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 48 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 305 - 330 | °C |
| Nozzle Temperature | 305 - 330 | °C |
| Front - Zone 3 Temperature | 305 - 330 | °C |
| Middle - Zone 2 Temperature | 295 - 320 | °C |
| Rear - Zone 1 Temperature | 280 - 310 | °C |
| Mold Temperature | 65 - 95 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 60 - 200 | rpm |
| Source GMD, last updated:10/13/1998 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Lexan RL7413.pdf |
|
