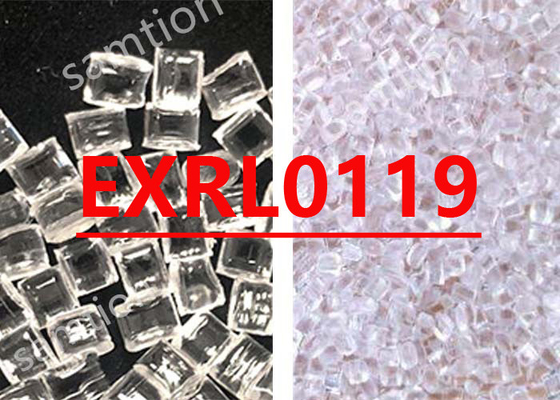

S-Plastics Lexan EXRL0119 resin is Transparent LEXAN SLX resin with outstanding uv resistance for extrusion applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 77 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 79 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 105 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2640 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 121 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2580 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 77 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 84 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 6.5 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 112 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2680 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 110 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2370 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 560 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 85 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 19 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 25 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 142 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 127 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 112 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 5.76E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 6.12E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 5.9E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 6.5E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 136 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 139 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 117 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.3 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.12 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 5 | g/10 min | ASTM D 1238 |
| Density | 1.3 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.11 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 3 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:07/23/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 48 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 295 - 315 | °C |
| Nozzle Temperature | 290 - 310 | °C |
| Front - Zone 3 Temperature | 295 - 315 | °C |
| Middle - Zone 2 Temperature | 280 - 305 | °C |
| Rear - Zone 1 Temperature | 270 - 295 | °C |
| Mold Temperature | 70 - 95 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:07/23/2003 | ||
|
