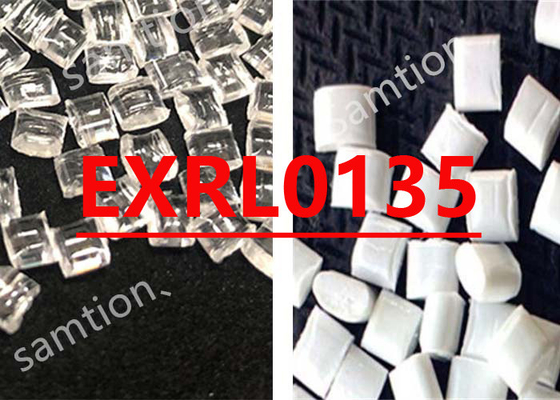

S-Plastics Lexan EXRL0135 resin is 10% GF reinforced FR PC with non-brominated and non-chlorinated FR systems.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 42 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 4.9 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 22 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3330 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 93 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3110 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 99 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 75 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 44 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 143 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 130 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.25 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.6 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.3 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 7.5 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 2.3 | mm | UL 94 by GE |
| Source GMD, last updated:08/11/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 48 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 310 - 330 | °C |
| Nozzle Temperature | 305 - 325 | °C |
| Front - Zone 3 Temperature | 310 - 330 | °C |
| Middle - Zone 2 Temperature | 300 - 320 | °C |
| Rear - Zone 1 Temperature | 290 - 310 | °C |
| Mold Temperature | 80 - 115 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:08/11/2004 | ||
|
For more information please download the datesheet |
|
 |
S-Plastics Lexan EXRL0135.pdf |
|
