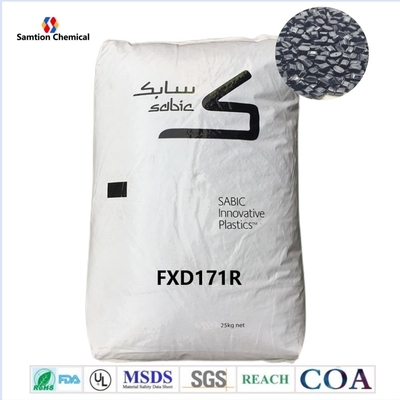

S-Plastics Lexan PC FXD171R Description
Lexan PC FXD171R * Transparent/transluscent PC for light diffusion special effects. MFR of 25.0.
Lexan PC FXD171R is designed for injection molding applications. Some of the key features of Lexan PC FXD171R include high impact resistance, excellent dimensional stability, and good processability. The high flow properties of Lexan PC FXD171R make it well-suited for parts that require complex shapes or thin walls, and it is often used in applications that require both high strength and good aesthetics.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 64 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6.2 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 125 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2330 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 93 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 779 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 70 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 137 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 126 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 130 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 130 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 130 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 25 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 1 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-2 Flame Class Rating (3) | 1.09 | mm | UL 94 |
| Source GMD, last updated:08/09/2000 | |||
|
For more information please see below |
|
|
S-Plastics lexan polycarbonate FXD171R.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics Lexan PC Application
|
S-Plastics Lexan PC is a versatile engineering thermoplastic with many applications across a wide range of industries. It is used in automotive parts, electrical and electronic components, medical devices, aerospace components, and building and construction applications. S-Plastics Lexan PC is preferred in these applications because of its unique combination of properties, including high impact resistance, excellent clarity, electrical insulation, biocompatibility, and flame retardancy. S-Plastics Lexan PC is a popular choice for applications where durability, strength, and performance are important. |
|
