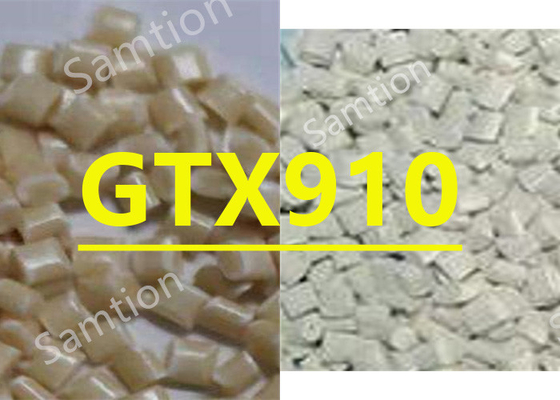

S-Plastics Noryl GTX910 resin is Unfilled grade for automotive on-line painted components. Dimensional stability. Excellent chemical resistance. Class A surface appearance.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 59 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 60 | % | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 95 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 2240 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 116 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 240 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 133 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 50 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -30 | 39 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 232 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 193 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 143 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 95°C, xflow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, flow | 1.26E-04 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, xflow | 1.26E-04 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 50 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.1 | - | ASTM D 792 |
| Density | 1.107 | g/cm³ | ASTM D 792 |
| Water Absorption, 50% RH, equilib | 1 | % | ASTM D 570 |
| Moisture Absorption, 50% RH, 24 hrs | 0.5 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 1.1 - 1.3 | % | S-Plastics Method |
| Mold Shrink, flow, annealed 130C 1hr | 1.6 - 1.8 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 3.2 mm | 1 - 1.2 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Arc Resistance, Tungsten {PLC} | 7 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:01/05/2000 | |||
| • Do NOT mix NORYL GTX* resin with other grades of NORYL* resins. | ||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 95 - 105 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.07 | % |
| Minimum Moisture Content | 0.02 | % |
| Melt Temperature | 280 - 305 | °C |
| Nozzle Temperature | 280 - 305 | °C |
| Front - Zone 3 Temperature | 275 - 305 | °C |
| Middle - Zone 2 Temperature | 270 - 305 | °C |
| Rear - Zone 1 Temperature | 265 - 305 | °C |
| Mold Temperature | 75 - 120 | °C |
| Back Pressure | 0.3 - 1.4 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 50 | % |
| Vent Depth | 0.013 - 0.038 | mm |
| Source GMD, last updated:01/05/2000 | ||
|
For more information please see below |
|
 |
S-Plastics Noryl GTX910.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics Noryl Resin Application
|
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
| 3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
||
