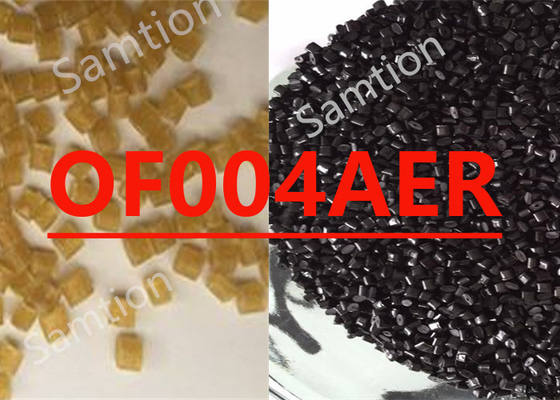

S-Plastics Thermocomp OF004AER resin is a compound based on Polyphenylene Sulfide resin containing Glass Fiber. Added features of this
material include: Easy Molding, Mold Release
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 93 | MPa | ASTM D 638 |
| Tensile Stress, break | 93 | MPa | ASTM D 638 |
| Tensile Strain, yield | 1.1 | % | ASTM D 638 |
| Tensile Strain, break | 1.1 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 8960 | MPa | ASTM D 638 |
| Flexural Stress | 103 | MPa | ASTM D 790 |
| Flexural Modulus | 8270 | MPa | ASTM D 790 |
| Tensile Stress, yield | 84 | MPa | ISO 527 |
| Tensile Stress, break | 84 | MPa | ISO 527 |
| Tensile Strain, yield | 0.9 | % | ISO 527 |
| Tensile Strain, break | 1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9860 | MPa | ISO 527 |
| Flexural Stress | 117 | MPa | ISO 178 |
| Flexural Modulus | 9000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 256 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 64 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 3 | J | ASTM D 3763 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 18 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 277 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 260 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 4.68E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 2.88E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 4.6E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 2.9E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 227 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 263 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.48 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.3 - 0.5 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.9 - 1.1 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.41 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1 | % | ISO 294 |
| Density | 1.48 | g/cm³ | ISO 1183 |
| Source GMD, last updated:09/24/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 315 - 320 | °C |
| Front - Zone 3 Temperature | 330 - 345 | °C |
| Middle - Zone 2 Temperature | 320 - 330 | °C |
| Rear - Zone 1 Temperature | 305 - 315 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:09/24/2008 | ||
