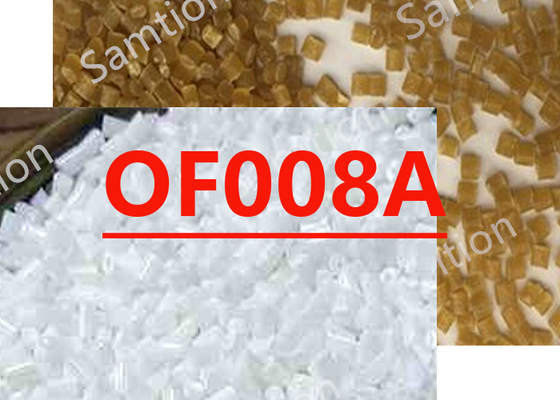

S-Plastics Thermocomp OF008A resin is a compound based on PPS - Branched resin containing Glass Fiber.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 178 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.7 | % | ASTM D 638 |
| Flexural Stress | 248 | MPa | ASTM D 790 |
| Flexural Modulus | 14260 | MPa | ASTM D 790 |
| Tensile Stress, break | 160 | MPa | ISO 527 |
| Tensile Strain, break | 1.2 | % | ISO 527 |
| Flexural Stress | 190 | MPa | ISO 178 |
| Flexural Modulus | 13400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 587 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 101 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 21 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 261 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.6E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 272 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.68 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.2 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.8 | % | ASTM D 955 |
| Wear Factor Washer | 240 | 10^-10 in^5-min/ft-lb-hr | ASTM D 3702 Modified |
| Dynamic COF | 0.66 | - | ASTM D 3702 Modified |
| Dynamic COF | 0.41 | - | ASTM D 3702 Modified |
| Static COF | 0.87 | - | ASTM D 3702 Modified |
| Static COF | 0.5 | - | ASTM D 3702 Modified |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.45 | mm | UL 94 by GE |
| Source GMD, last updated:09/08/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 315 - 320 | °C |
| Front - Zone 3 Temperature | 330 - 345 | °C |
| Middle - Zone 2 Temperature | 320 - 330 | °C |
| Rear - Zone 1 Temperature | 305 - 315 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:09/08/2005 | ||
