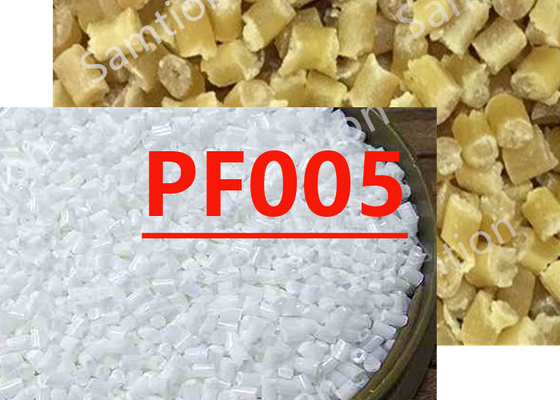

S-Plastics Thermocomp PF005 resin is 25% glass fibre reinforced Polyamide 6 injection moulding resin.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 150 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 3.5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 7900 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 190 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 7800 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 10 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -20°C | 9 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 50 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.1E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 9.1E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/120 | 222 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 220 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 210 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.2 - 0.3 | % | S-Plastics Method |
| Density | 1.31 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 6.5 | % | ISO 62 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+16 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+16 | Ohm | IEC 60093 |
| Dielectric Strength, in oil, 3.2 mm | 20 | kV/mm | IEC 60243-1 |
| Relative Permittivity, 50/60 Hz | 3.6 | - | IEC 60250 |
| Relative Permittivity, 1 MHz | 3.4 | - | IEC 60250 |
| Dissipation Factor, 50/60 Hz | 0.0061 | - | IEC 60250 |
| Dissipation Factor, 1 MHz | 0.016 | - | IEC 60250 |
| Comparative Tracking Index | 500 | V | IEC 60112 |
| Comparative Tracking Index, M | 375 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 0.75 | mm | UL 94 by GE |
| Glow Wire Flammability Index 650°C, passes at | 2 | mm | IEC 60695-2-12 |
| Oxygen Index (LOI) | 24 | % | ISO 4589 |
| Source GMD, last updated:11/03/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 85 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.2 | % |
| Melt Temperature | 250 - 280 | °C |
| Nozzle Temperature | 240 - 270 | °C |
| Front - Zone 3 Temperature | 250 - 280 | °C |
| Middle - Zone 2 Temperature | 250 - 280 | °C |
| Rear - Zone 1 Temperature | 250 - 280 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 70 - 120 | °C |
| Source GMD, last updated:11/03/2003 | ||
