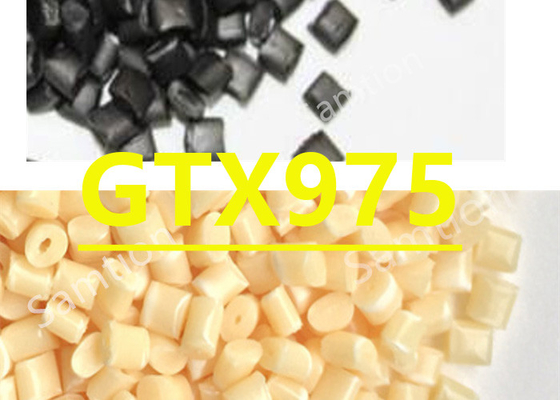

S-Plastics Noryl GTX975 resin is a 18% mineral filled material especially designed for in- or on-line painted exterior automotive trim part, e.g. tankflaps and corner panels. This material combines high stiffness and excellent temperature resistance with conductivity for electrostatic painting in an unique way.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 69 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 68 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 3.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4.5 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 4450 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 113 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 4000 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 65 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 65 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.5 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4200 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 110 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 35 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 30 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 3 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 40 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | 35 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 4 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 3 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 3 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 40 | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | 35 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 215 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 210 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 5.4E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 6.E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 60°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 6.5E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 195 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 200 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 185 | °C | ISO 75/Be |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.25 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.8 - 1.2 | % | S-Plastics Method |
| Melt Flow Rate, 280°C/5.0 kgf | 15 | g/10 min | ASTM D 1238 |
| Density | 1.2 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 3.5 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 1.1 | % | ISO 62 |
| Melt Volume Rate, MVR at 280°C/5.0 kg | 10 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+03 - 1.E+04 | Ohm-cm | S-Plastics Method |
| Source GMD, last updated:11/26/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 100 - 110 | °C |
| Drying Time | 2 - 3 | hrs |
| Maximum Moisture Content | 0.07 | % |
| Melt Temperature | 300 - 320 | °C |
| Nozzle Temperature | 280 - 300 | °C |
| Front - Zone 3 Temperature | 300 - 320 | °C |
| Middle - Zone 2 Temperature | 280 - 300 | °C |
| Rear - Zone 1 Temperature | 260 - 280 | °C |
| Hopper Temperature | 80 - 100 | °C |
| Mold Temperature | 100 - 120 | °C |
| Source GMD, last updated:11/26/2007 | ||
|
For more information please see below |
|
 |
S-Plastics Noryl GTX975.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics Noryl Resin Application
|
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
| 3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
||
