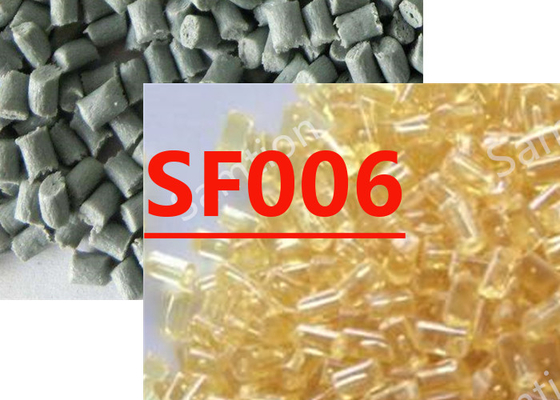

S-Plastics Thermocomp SF006 resin is a compound based on Nylon 12 resin containing Glass Fiber.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 106 | MPa | ASTM D 638 |
| Tensile Strain, break | 4.7 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 6550 | MPa | ASTM D 638 |
| Flexural Stress | 170 | MPa | ASTM D 790 |
| Flexural Modulus | 5860 | MPa | ASTM D 790 |
| Tensile Stress, break | 108 | MPa | ISO 527 |
| Tensile Strain, break | 4.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6580 | MPa | ISO 527 |
| Flexural Stress | 169 | MPa | ISO 178 |
| Flexural Modulus | 6240 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 950 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 149 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 13 | J | ASTM D 3763 |
| Multiaxial Impact | 3 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 58 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 15 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 163 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 4.37E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.12E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 4.37E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.13E-04 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 162 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.243 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.14 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.2 - 0.3 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.7 - 0.8 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.21 - 0.3 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.74 - 0.81 | % | ISO 294 |
| Density | 1.24 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.22 | % | ISO 62 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.12 - 0.2 | % |
| Melt Temperature | 225 - 240 | °C |
| Front - Zone 3 Temperature | 225 - 240 | °C |
| Middle - Zone 2 Temperature | 220 - 230 | °C |
| Rear - Zone 1 Temperature | 215 - 225 | °C |
| Mold Temperature | 70 - 80 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
