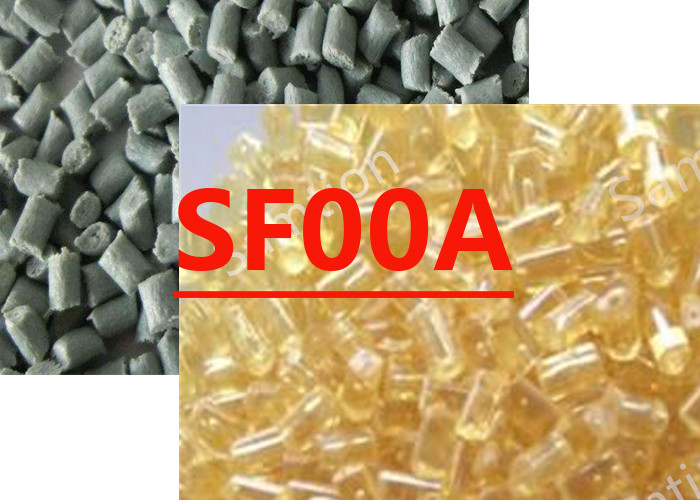

S-Plastics Thermocomp SF00A resin is Glass filled Nylon 12
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 121 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 121 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.7 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 12800 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 148 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 143 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 8930 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 113 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 113 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.5 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 12280 | MPa | ISO 527 |
| Flexural Modulus, 2 mm/min | 10 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 577 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 97 | J/m | ASTM D 256 |
| Multiaxial Impact | 16 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 30 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 1 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 176 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 166 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 176 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.48 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.2 - 0.4 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.8 - 1 | % | ASTM D 955 |
| Density | 1.48 | g/cm³ | ISO 1183 |
| Source GMD, last updated:02/07/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.12 - 0.2 | % |
| Melt Temperature | 225 - 240 | °C |
| Front - Zone 3 Temperature | 225 - 240 | °C |
| Middle - Zone 2 Temperature | 220 - 230 | °C |
| Rear - Zone 1 Temperature | 215 - 225 | °C |
| Mold Temperature | 70 - 80 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:02/07/2008 | ||
