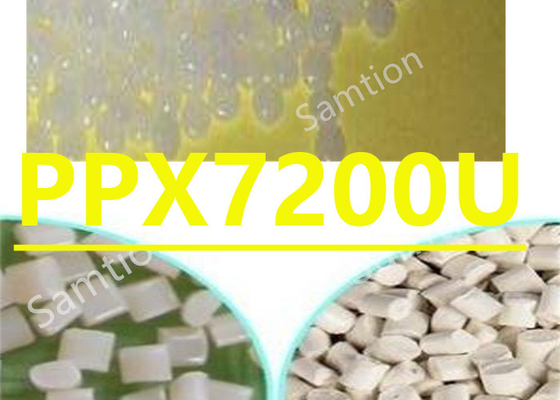

S-Plastics Noryl PPX7200U resin is PP+PPE+PS. UV-stabilized. Improved chemical resistance and surface aesthetics in injection molded applications. NSF61/UL94 listings pending.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 33 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 27 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 10 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 130 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 1240 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 48 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1440 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 34 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 28 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 8.2 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 115 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1670 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 48 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1600 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1441 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 149 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 36 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 14 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 12 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 6 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | 80 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 146 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 110 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 71 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.9E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.08E-04 | 1/°C | ASTM E 831 |
| Vicat Softening Temp, Rate B/50 | 103 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 107 | °C | ISO 306 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 0.99 | - | ASTM D 792 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.06 - 0.08 | % | S-Plastics Method |
| Mold Shrinkage, flow, 3.2 mm | 0.6 - 0.8 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.6 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/5.0 kgf | 16 | g/10 min | ASTM D 1238 |
| Density | 0.99 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 18 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:03/05/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 60 - 65 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 290 | °C |
| Nozzle Temperature | 260 - 290 | °C |
| Front - Zone 3 Temperature | 250 - 290 | °C |
| Middle - Zone 2 Temperature | 240 - 280 | °C |
| Rear - Zone 1 Temperature | 225 - 275 | °C |
| Mold Temperature | 30 - 50 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:03/05/2003 | ||
|
For more information please see below |
|
 |
S-Plastics Noryl PPX7200U.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics Noryl Resin Application
|
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
| 3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
||
