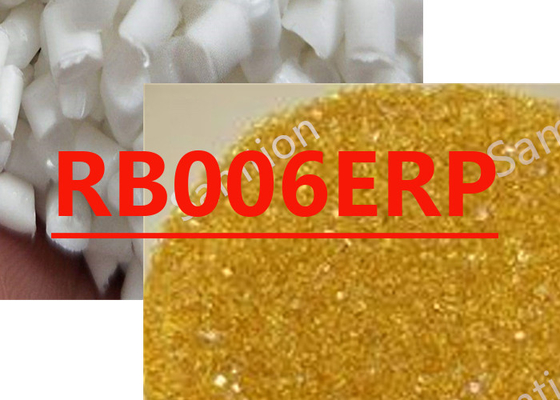

S-Plastics Thermocomp RB006ERP resin is a compound based on PA 66. Added features include: low density.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 74 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4000 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 135 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 13 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 2 | kJ/m² | ISO 180/1A |
| PHYSICAL | Value | Unit | Standard |
| Density | 0.9 | g/cm³ | ISO 1183 |
| Source GMD, last updated:06/19/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 280 - 305 | °C |
| Front - Zone 3 Temperature | 295 - 305 | °C |
| Middle - Zone 2 Temperature | 280 - 295 | °C |
| Rear - Zone 1 Temperature | 265 - 275 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:06/19/2008 | ||
Other related products we recommend:
For more information please download the datasheet | |
 | S-Plastics Thermocomp RB006ERP.pdf |
