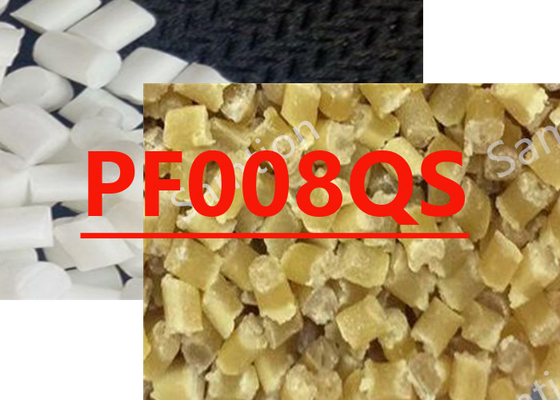

S-Plastics Thermocomp PF008QS resin is a compound based on Nylon 6 resin containing Glass Fiber. Added features of this material include:
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 152 | MPa | ASTM D 638 |
| Tensile Strain, break | 3 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 12200 | MPa | ASTM D 638 |
| Flexural Stress | 244 | MPa | ASTM D 790 |
| Flexural Modulus | 9580 | MPa | ASTM D 790 |
| Tensile Stress, break | 165 | MPa | ISO 527 |
| Tensile Strain, break | 3.4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 11600 | MPa | ISO 527 |
| Flexural Stress | 262 | MPa | ISO 178 |
| Flexural Modulus | 12000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1105 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 170 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 12 | J | ASTM D 3763 |
| Multiaxial Impact | 4 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 72 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 17 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 218 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 199 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 3.09E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 5.56E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 3.09E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 5.56E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 201 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.354 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.31 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.1 - 0.3 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.7 - 0.9 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.1 - 0.3 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.7 - 0.9 | % | ISO 294 |
| Density | 1.35 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.5 | % | ISO 62 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 255 - 275 | °C |
| Front - Zone 3 Temperature | 265 - 275 | °C |
| Middle - Zone 2 Temperature | 255 - 265 | °C |
| Rear - Zone 1 Temperature | 250 - 260 | °C |
| Mold Temperature | 80 - 95 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
