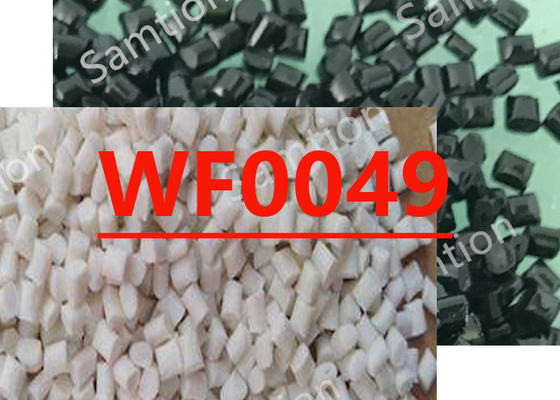

S-Plastics Thermocomp WF0049 resin is a compound based on Polybutylene Terephalate resin containing Glass Fiber, Flame Retardant. Addedfeatures of this material include: Flame Retardant.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 100 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2 - 3 | % | ISO 527 |
| Flexural Stress, break, 2 mm/min | 160 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 6500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 35 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.5E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 205 | °C | ISO 75/Af |
| Relative Temp Index, Mech w/impact | 125 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.3 - 0.6 | % | S-Plastics Method |
| Density | 1.58 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+14 | Ohm | ASTM D 257 |
| Comparative Tracking Index | 225 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 0.75 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1.5 | mm | IEC 60695-2-12 |
| Source GMD, last updated:10/10/2006 | |||
