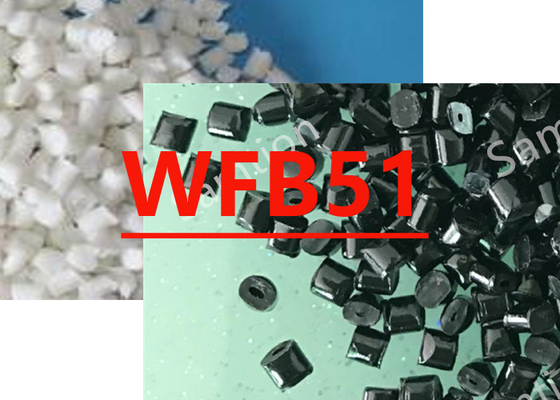

S-Plastics Thermocomp WFB51 resin is a compound based on Polybutylene Terephalate resin containing Glass Bead, Glass Fiber. Addedfeatures of this material include: Low Warpage.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 58 | MPa | ASTM D 638 |
| Tensile Strain, break | 3.2 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 4200 | MPa | ASTM D 638 |
| Flexural Stress | 101 | MPa | ASTM D 790 |
| Flexural Modulus | 4130 | MPa | ASTM D 790 |
| Tensile Stress, break | 58 | MPa | ISO 527 |
| Tensile Strain, break | 3.2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4300 | MPa | ISO 527 |
| Flexural Stress | 100 | MPa | ISO 178 |
| Flexural Modulus | 4120 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 283 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 26 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 3 | J | ASTM D 3763 |
| Multiaxial Impact | 0 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.514 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 1.3 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 1.6 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 1.29 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1.58 | % | ISO 294 |
| Density | 1.51 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.08 | % | ISO 62 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 240 - 265 | °C |
| Front - Zone 3 Temperature | 260 - 270 | °C |
| Middle - Zone 2 Temperature | 245 - 255 | °C |
| Rear - Zone 1 Temperature | 220 - 230 | °C |
| Mold Temperature | 80 - 100 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
