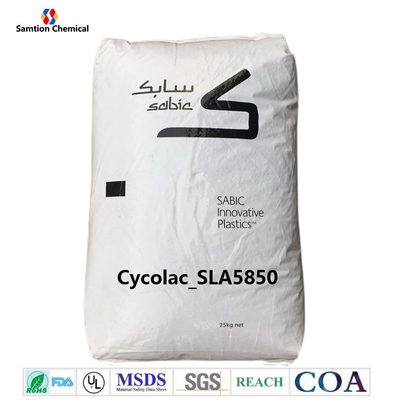

S-Plastics Lubricomp Cycolac_SLA5850 resin is
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 47 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 40 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 12 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2750 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 2510 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 42 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 2 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 87 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Melt Flow Rate, 200°C/5.0 kgf | 8.2 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:06/14/2000 | |||
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 80 - 95 | °C | |
| Drying Time | 2 - 4 | hrs | |
| Drying Time (Cumulative) | 8 | hrs | |
| Maximum Moisture Content | 0.01 | % | |
| Melt Temperature | 205 - 250 | °C | |
| Nozzle Temperature | 205 - 250 | °C | |
| Front - Zone 3 Temperature | 205 - 225 | °C | |
| Middle - Zone 2 Temperature | 195 - 215 | °C | |
| Rear - Zone 1 Temperature | 175 - 200 | °C | |
| Mold Temperature | 50 - 65 | °C | |
| Back Pressure | 0.3 - 0.7 | MPa | |
| Screw Speed | 30 - 60 | rpm | |
| Shot to Cylinder Size | 50 - 70 | % | |
| Vent Depth | 0.038 - 0.051 | mm | |
| Source GMD, last updated:06/14/2000 | |||
