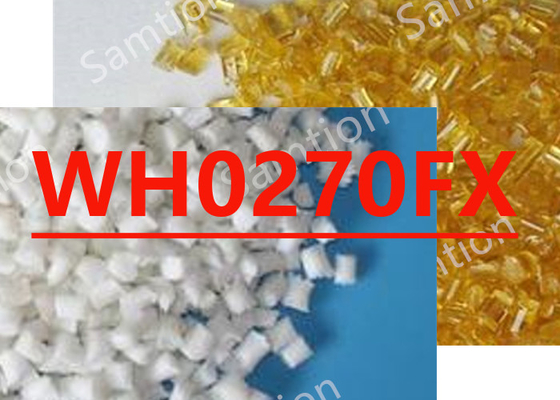

S-Plastics Thermocomp WH0270FX resin is PBT filled with high specific gravity filler to target 2.7 specific gravity.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 0.9 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 0.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 9280 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 64 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 51 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 7700 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 200 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 29 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 7 | J | ASTM D 3763 |
| PHYSICAL | Value | Unit | Standard |
| Density | 2.694 | g/cm³ | ASTM D 792 |
| Source GMD, last updated:07/22/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 240 - 265 | °C |
| Front - Zone 3 Temperature | 260 - 270 | °C |
| Middle - Zone 2 Temperature | 245 - 255 | °C |
| Rear - Zone 1 Temperature | 220 - 230 | °C |
| Mold Temperature | 80 - 100 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:07/22/2008 | ||
