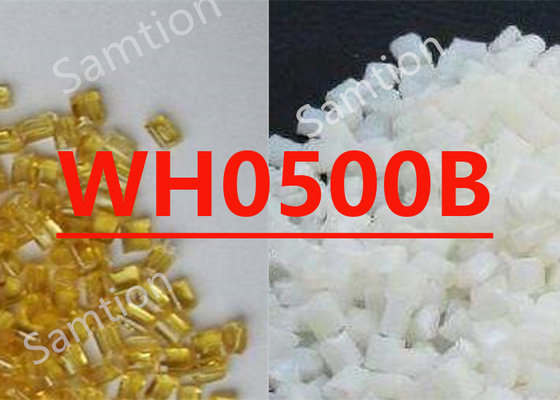

S-Plastics Thermocomp WH0500B resin is a compound based on Polybutylene Terephalate resin containing High Specific Gravity Filler. Addedfeatures of this material include: High Specific Gravity.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 31 | MPa | ASTM D 638 |
| Tensile Strain, break | 5 | % | ASTM D 638 |
| Flexural Stress | 62 | MPa | ASTM D 790 |
| Flexural Modulus | 2170 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 801 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 48 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 76 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 5 | g/cm³ | ASTM D 792 |
| Source GMD, last updated:09/08/2005 | |||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Thermocomp WH0500B.pdf |
|
