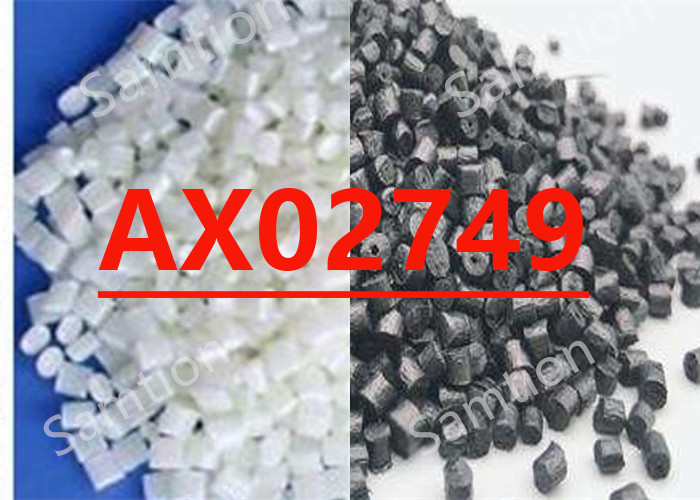

S-Plastics Thermocomp AX02749 resin is a compound based on ABS containing proprietary fillers.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 76 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 6080 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 122 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 6080 | MPa | ASTM D 790 |
| Tensile Stress, break, 5 mm/min | 77 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6040 | MPa | ISO 527 |
| Flexural Stress | 119 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5970 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 374 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 80 | J/m | ASTM D 256 |
| Multiaxial Impact | 2 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 13 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 23 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 100 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 5.6E-05 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 5.2E-05 | 1/°C | ASTM D 696 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 100 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.25 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.2 - 0.5 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.4 - 0.7 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.2 - 0.5 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.4 - 0.7 | % | ISO 294 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2010/06/02 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 - 0.1 | % |
| Melt Temperature | 260 | °C |
| Front - Zone 3 Temperature | 265 - 275 | °C |
| Middle - Zone 2 Temperature | 230 - 245 | °C |
| Rear - Zone 1 Temperature | 205 - 215 | °C |
| Mold Temperature | 70 - 80 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2010/06/02 | ||
