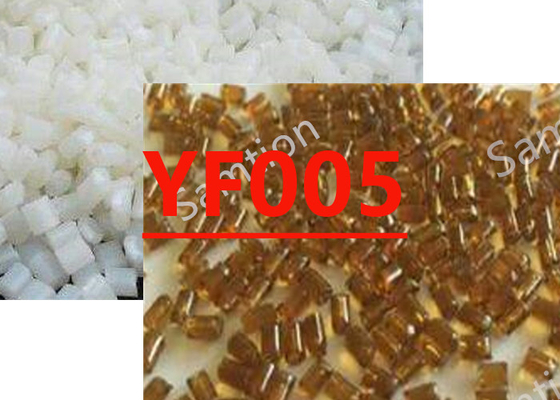

S-Plastics Thermocomp YF005 resin is a compound based on TPEE resin containing Glass Fiber.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 54 | MPa | ASTM D 638 |
| Tensile Strain, break | 8.5 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2730 | MPa | ASTM D 638 |
| Flexural Stress | 68 | MPa | ASTM D 790 |
| Flexural Modulus | 2530 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1250 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 336 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 170 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.39 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.4 | % | ASTM D 955 |
| Source GMD, last updated:03/28/2006 | |||
