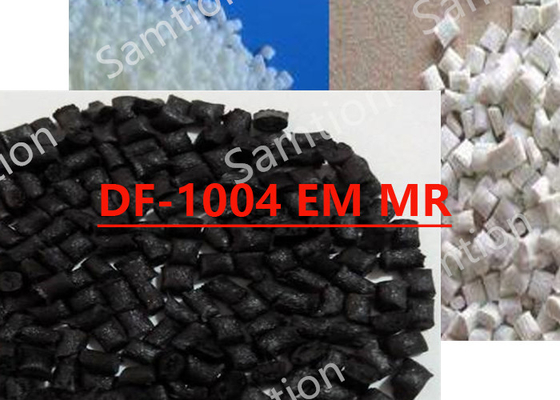

S-Plastics Thermocomp DF-1004 EM MR resin is a compound based on Polycarbonate resin containing Glass Fiber. Added features of this materialinclude: Easy Molding, Mold Release.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 114 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6200 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 171 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 12 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.1E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 7.4E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 143 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 139 | °C | ISO 75/Af |
| Source GMD, last updated:09/07/2006 | |||
