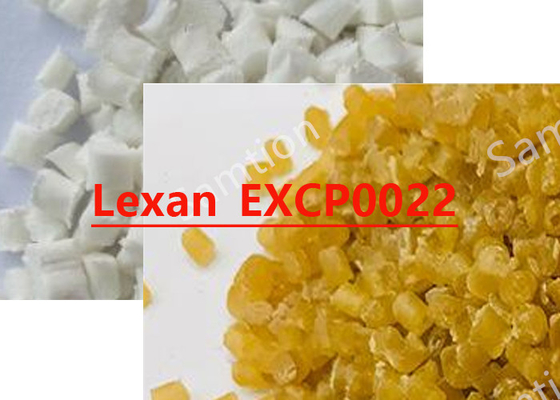

S-Plastics Thermocomp Lexan_EXCP0022 resin is a 11% carbon fiber filled PC injection moulding resin. Material identification acc.
ISO11469: >PC-CF11<
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 105 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 7500 | MPa | ISO 527 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 30 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 136 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.24 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 20 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 0.8 | mm | UL 94 by GE |
| Source GMD, last updated:01/08/2002 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 285 - 310 | °C |
| Nozzle Temperature | 295 - 310 | °C |
| Front - Zone 3 Temperature | 295 - 310 | °C |
| Middle - Zone 2 Temperature | 295 - 305 | °C |
| Rear - Zone 1 Temperature | 275 - 295 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 70 - 100 | °C |
| Source GMD, last updated:01/08/2002 | ||
