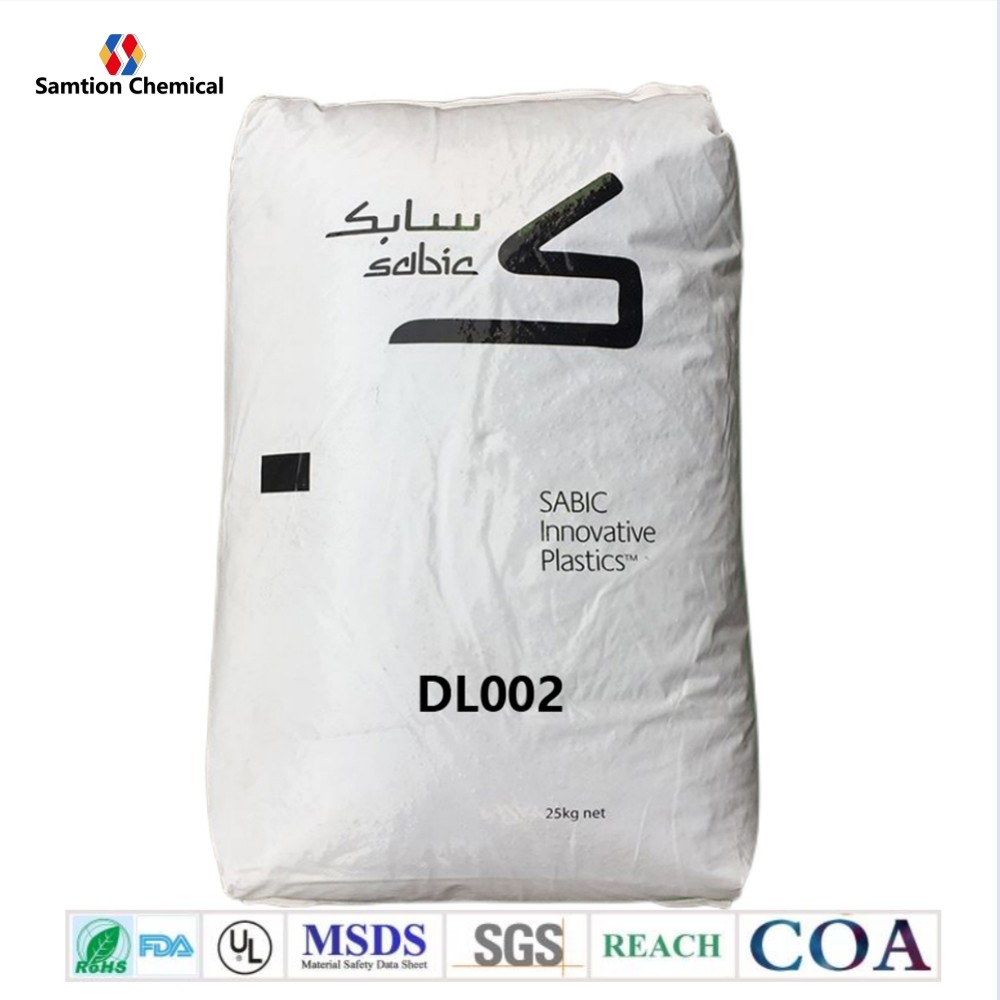

S-Plastics Lubricomp DL002 resin is "Also known as: DL-4020 Product Reorder Name: DL002" LNP LUBRICOMP* DL002 is a compound based on Polycarbonate resin containing PTFE. Added features of this material include:Internally Lubricated.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 53 | MPa | ASTM D 638 |
| Tensile Strain, break | 53 | % | ASTM D 638 |
| Flexural Stress | 81 | MPa | ASTM D 790 |
| Flexural Modulus | 2270 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 240 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 128 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.25 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.7 - 0.9 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.7 - 0.9 | % | ASTM D 955 |
| Wear Factor Washer | 97 | 10^-10 in^5-min/ft-lb-hr | ASTM D 3702 Modified |
| Dynamic COF | 0.28 | - | ASTM D 3702 Modified |
| Static COF | 0.17 | - | ASTM D 3702 Modified |
| Source GMD, last updated:09/28/2004 | |||
Processing
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 120 | °C | |
| Drying Time | 4 | hrs | |
| Maximum Moisture Content | 0.02 | % | |
| Melt Temperature | 300 - 315 | °C | |
| Front - Zone 3 Temperature | 310 - 320 | °C | |
| Middle - Zone 2 Temperature | 305 - 315 | °C | |
| Rear - Zone 1 Temperature | 295 - 305 | °C | |
| Mold Temperature | 80 - 110 | °C | |
| Back Pressure | 0.2 - 0.3 | MPa | |
| Screw Speed | 30 - 60 | rpm | |
| Source GMD, last updated:09/28/2004 | |||
