Home /Products/S-Plastic Thermocomp/S-Plastic Thermocomp EF004 is a compound based on Polyimide resin containing Glass Fiber.

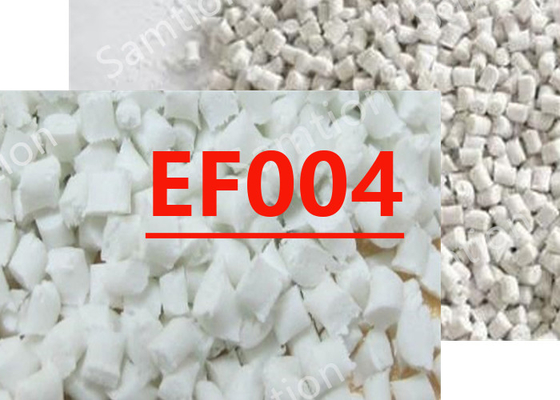

S-Plastic Thermocomp EF004 is a compound based on Polyimide resin containing Glass Fiber.

100KG
MOQ
*USD
Price
S-Plastic Thermocomp EF004 is a compound based on Polyimide resin containing Glass Fiber.
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 260°C/2.16 Kg: ？？？
UL Recognized, 94HB Flame Class Rating (3): ？？？
Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Thermocomp
Certification: Datasheet，MSDS，ROHS，SGS，REACH，FDA，EU，UL，COC/COA ,please contact us
Model Number: EF004
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Thermocomp EF004 resin is a compound based on Polyimide resin containing Glass Fiber.



​Property

MECHANICAL Value Unit Standard
Tensile Stress, break 150 MPa ASTM D 638
Tensile Strain, break 3.4 % ASTM D 638
Tensile Modulus, 50 mm/min 7180 MPa ASTM D 638
Flexural Stress 240 MPa ASTM D 790
Flexural Modulus 7570 MPa ASTM D 790
Tensile Stress, break 155 MPa ISO 527
Tensile Strain, break 2.9 - 4 % ISO 527
Tensile Modulus, 1 mm/min 6800 MPa ISO 527
Flexural Stress 226 MPa ISO 178
Flexural Modulus 6800 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 694 J/m ASTM D 4812
Izod Impact, notched, 23°C 74 J/m ASTM D 256
Izod Impact, unnotched 80*10*4 +23°C 47 kJ/m² ISO 180/1U
Izod Impact, notched 80*10*4 +23°C 10 kJ/m² ISO 180/1A
THERMAL Value Unit Standard
HDT, 1.82 MPa, 3.2mm, unannealed 207 °C ASTM D 648
CTE, -40°C to 40°C, flow 2.5E-05 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 6.E-05 1/°C ISO 11359-2
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm 205 °C ISO 75/Af
PHYSICAL Value Unit Standard
Density 1.43 g/cm³ ASTM D 792
Moisture Absorption, 50% RH, 24 hrs 0.19 % ASTM D 570
Mold Shrinkage, flow, 24 hrs 0.3 - 0.5 % ASTM D 955
Mold Shrinkage, xflow, 24 hrs 0.6 - 0.8 % ASTM D 955
Mold Shrinkage, flow, 24 hrs 0.3 - 0.5 % ISO 294
Mold Shrinkage, xflow, 24 hrs 0.6 - 0.8 % ISO 294
Wear Factor Washer 140 10^-10 in^5-min/ft-lb-hr ASTM D 3702 Modified
Dynamic COF 0.52 - ASTM D 3702 Modified
Static COF 0.48 - ASTM D 3702 Modified
Density 1.43 g/cm³ ISO 1183
Source GMD, last updated:10/01/2004

Processing



Injection Molding Value Unit
Drying Temperature 120 - 150 °C
Drying Time 4 hrs
Maximum Moisture Content 0.05 %
Melt Temperature 360 - 365 °C
Front - Zone 3 Temperature 365 - 375 °C
Middle - Zone 2 Temperature 355 - 365 °C
Rear - Zone 1 Temperature 345 - 355 °C
Mold Temperature 120 - 150 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 60 - 100 rpm
Source GMD, last updated:10/01/2004
THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
"(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294."
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.
