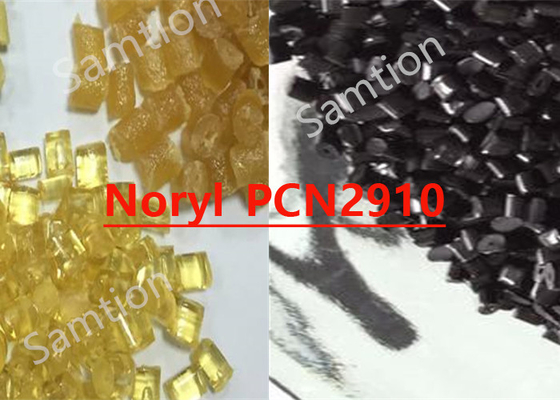

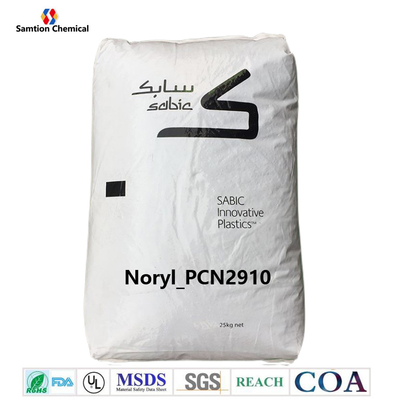

S-Plastics Thermocomp Noryl_PCN2910 resin is a 35% Glass/Mica filled. High modulus and tight tolerance molding for the chassis
market.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 122 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 122 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.5 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 11370 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 165 | MPa | ASTM D 790 |
| Flexural Stress, brk, 2.6 mm/min, 100 mm span | 151 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 9790 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 8750 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 106 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 106 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.3 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.3 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10600 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 160 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 160 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 9130 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 331 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 58 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 14 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| Charpy Impact, notched, 23°C | 4 | kJ/m² | ISO 179/2C |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 20 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 140 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 123 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 126 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.16E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 4.68E-05 | 1/°C | ASTM E 831 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 129 | °C | ISO 75/Af |
| Relative Temp Index, Elec | 65 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 65 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 65 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.38 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.1 - 0.3 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/5.0 kgf | 10 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 2.99 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2.28 | mm | UL 94 |
| Source GMD, last updated:12/14/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 105 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 295 - 315 | °C |
| Nozzle Temperature | 295 - 315 | °C |
| Front - Zone 3 Temperature | 280 - 315 | °C |
| Middle - Zone 2 Temperature | 270 - 310 | °C |
| Rear - Zone 1 Temperature | 260 - 305 | °C |
| Mold Temperature | 75 - 105 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 70 | % |
| Source GMD, last updated:12/14/2001 | ||
