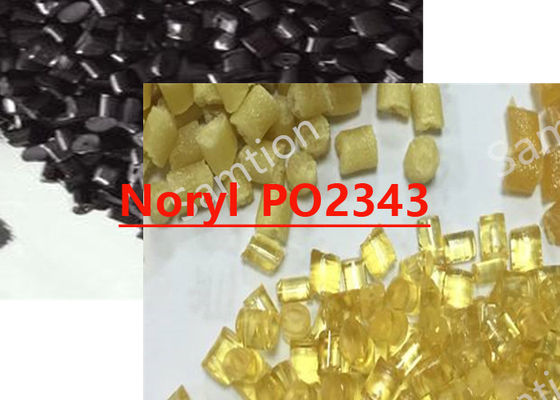

S-Plastics Thermocomp Noryl_PO2343 resin is a glass/mineral reinforced, flame retardant halogen free (according to VDE/DIN 472 part
815) material, which offers an ideal combination of improved dimensional stability and surface appearance.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 110 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6500 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 145 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5800 | MPa | ISO 178 |
| Hardness, H358/30 | 130 | MPa | ISO 2039-1 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 30 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | 30 | kJ/m² | ISO 180/1U |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 30 | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | 30 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 80°C, flow | 3.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/120 | 140 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 130 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 125 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.25 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 280°C/5.0 kg | 10 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.5 | mm | UL 94 by GE |
| Source GMD, last updated:03/23/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 100 - 120 | °C |
| Drying Time | 2 - 3 | hrs |
| Melt Temperature | 280 - 300 | °C |
| Nozzle Temperature | 260 - 280 | °C |
| Front - Zone 3 Temperature | 280 - 300 | °C |
| Middle - Zone 2 Temperature | 260 - 280 | °C |
| Rear - Zone 1 Temperature | 240 - 260 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 80 - 120 | °C |
| Source GMD, last updated:03/23/1999 |
