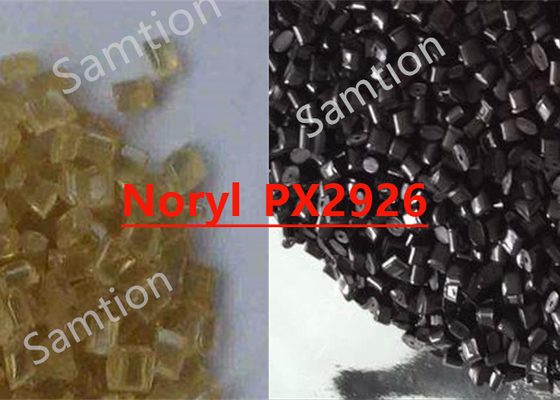

S-Plastics Thermocomp Noryl_PX2926 resin is a reinforced high modulus PPE+PS. 5VA rated at 2.5 in black and at 3.0 in gray.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 106 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4 | % | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 141 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 8460 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 58 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 110 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 50 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.33 | - | ASTM D 792 |
| ELECTRICAL | Value | Unit | Standard |
| Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 0 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 2.99 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.56 | mm | UL 94 |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 105 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 295 - 315 | °C |
| Nozzle Temperature | 295 - 315 | °C |
| Front - Zone 3 Temperature | 280 - 315 | °C |
| Middle - Zone 2 Temperature | 270 - 310 | °C |
| Rear - Zone 1 Temperature | 260 - 305 | °C |
| Mold Temperature | 75 - 105 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 70 | % |
| Source GMD, last updated:12/29/1999 | ||
