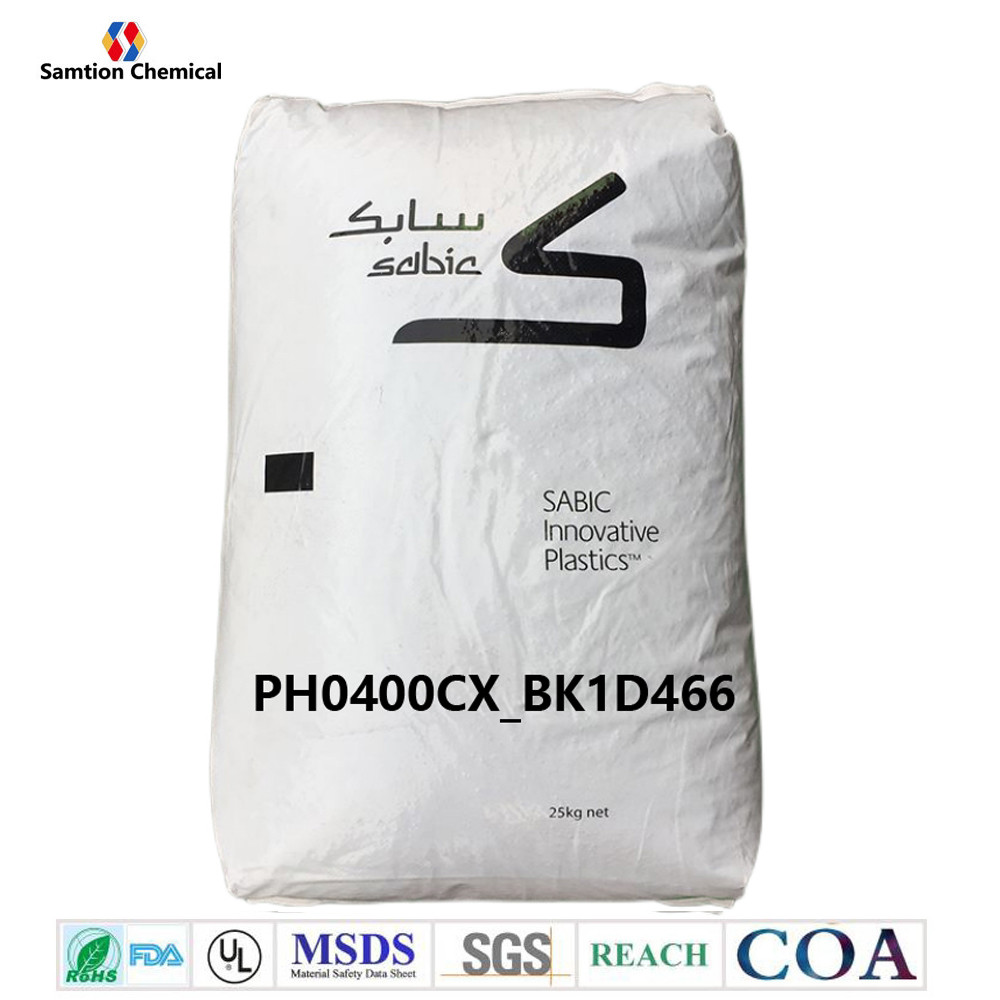

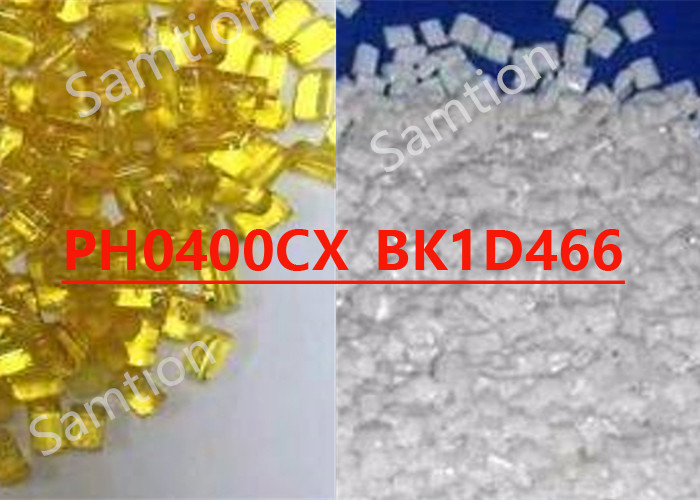

S-Plastics Thermocomp PH0400CX_BK1D466 resin is 4.0 specific gravity, Nylon 6
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 94 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 94 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.3 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 17700 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 155 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 157 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 12900 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 92 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 92 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 13980 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 153 | MPa | ISO 178 |
| Flexural Strain, break, 2 mm/min | 1.6 | % | ISO 178 |
| Flexural Modulus, 2 mm/min | 13260 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 431 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 71 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 14 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 27 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 195 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 2.61E+01 | 1/°C | ASTM E 831 |
| CTE, -30°C to 30°C, xflow | 4.01E+01 | 1/°C | ASTM E 831 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 197 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 4 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.17 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.44 - 0.46 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.81 - 0.83 | % | ASTM D 955 |
| Density | 4 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.26 | % | ISO 62 |
| Source GMD, last updated:11/19/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 265 - 270 | °C |
| Front - Zone 3 Temperature | 260 - 270 | °C |
| Middle - Zone 2 Temperature | 250 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 250 | °C |
| Mold Temperature | 80 - 95 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:11/19/2008 | ||
