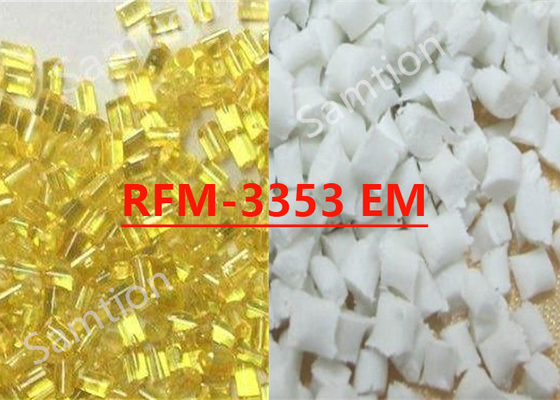

S-Plastics Thermocomp RFM-3353 EM resin is a compound based on Nylon 66 resin containing Glass Fiber, Mineral. Added features of this materialinclude: Easy Molding.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 119 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10400 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 171 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 8500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 30 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 7.1E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 248 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 221 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.3 - 0.5 | % | S-Plastics Method |
| Density | 1.48 | g/cm³ | ISO 1183 |
| Source GMD, last updated:01/03/2007 | |||
