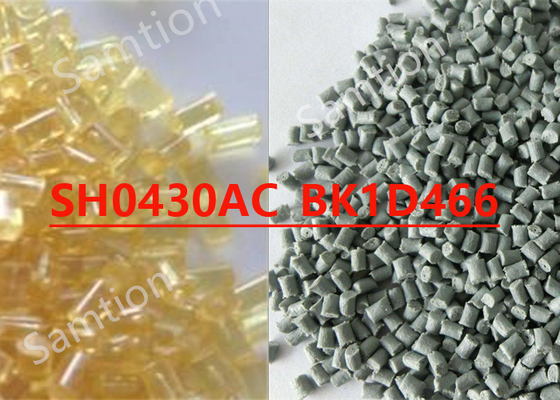

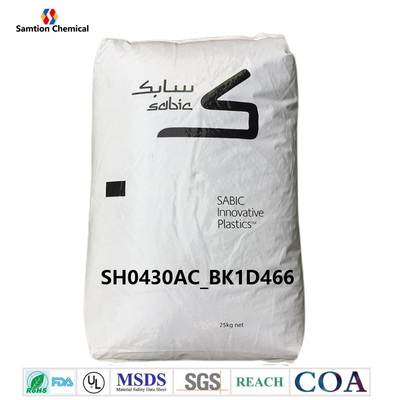

S-Plastics Thermocomp SH0430AC_BK1D466 resin is 4.3 specific gravity nylon 12, clean compound system
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 41 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 41 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 3.2 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 4800 | MPa | ASTM D 638 |
| Flexural Stress | 67 | MPa | ASTM D 790 |
| Flexural Modulus | 4320 | MPa | ASTM D 790 |
| Tensile Stress, yield | 40 | MPa | ISO 527 |
| Tensile Stress, break | 40 | MPa | ISO 527 |
| Tensile Strain, yield | 1.5 | % | ISO 527 |
| Tensile Strain, break | 1.5 | % | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 69 | MPa | ISO 178 |
| Flexural Strain, break, 2 mm/min | 3.2 | % | ISO 178 |
| Flexural Modulus, 2 mm/min | 4250 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 481 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 66 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 28 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 101 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 7.35E+01 - 7.55E+01 | 1/°C | ASTM E 831 |
| CTE, -30°C to 30°C, xflow | 6.68E+01 - 6.88E+01 | 1/°C | ASTM E 831 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 97 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 4.27 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.02 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.81 - 1.01 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.87 - 1.07 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 0.03 | % | ISO 62 |
| Source GMD, last updated:07/30/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.12 - 0.2 | % |
| Melt Temperature | 225 - 240 | °C |
| Front - Zone 3 Temperature | 225 - 240 | °C |
| Middle - Zone 2 Temperature | 220 - 230 | °C |
| Rear - Zone 1 Temperature | 215 - 225 | °C |
| Mold Temperature | 70 - 80 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:07/30/2008 | ||
