S-Plastic Thermocomp EXCP0112 40% glass/mineral reinforced PPS/PPE blend. Corona resistant, applications requiring

100KG
MOQ
*USD
Price
S-Plastic Thermocomp EXCP0112 40% glass/mineral reinforced PPS/PPE blend. Corona resistant, applications requiring
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 260°C/2.16 Kg: ???
UL Recognized, 94HB Flame Class Rating (3): ???
Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Thermocomp
Certification: Datasheet,MSDS,ROHS,SGS,REACH,FDA,EU,UL,COC/COA ,please contact us
Model Number: EXCP0112
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

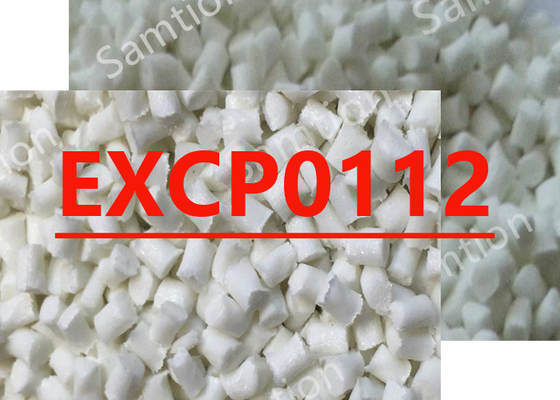

S-Plastics Thermocomp EXCP0112 resin is PRELIMINARY DATA. 40% glass/mineral reinforced PPS/PPE blend. Corona resistant, applications requiring voltage resistance.



Property

MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 5 mm/min 116 MPa ASTM D 638
Tensile Stress, brk, Type I, 5 mm/min 116 MPa ASTM D 638
Tensile Strain, yld, Type I, 5 mm/min 1.6 % ASTM D 638
Tensile Strain, brk, Type I, 5 mm/min 1.6 % ASTM D 638
Tensile Modulus, 5 mm/min 12370 MPa ASTM D 638
Flexural Stress, brk, 1.3 mm/min, 50 mm span 157 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 10850 MPa ASTM D 790
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 229 J/m ASTM D 4812
Izod Impact, notched, 23°C 42 J/m ASTM D 256
Instrumented Impact Total Energy, 23°C 3 J ASTM D 3763
THERMAL Value Unit Standard
HDT, 0.45 MPa, 3.2 mm, unannealed 261 °C ASTM D 648
HDT, 1.82 MPa, 3.2mm, unannealed 202 °C ASTM D 648
PHYSICAL Value Unit Standard
Specific Gravity 1.51 - ASTM D 792
ELECTRICAL Value Unit Standard
Relative Permittivity, 50/60 Hz 3.12 - ASTM D 150
Source GMD, last updated:11/30/2001

Processing

Injection Molding Value Unit
Drying Temperature 140 °C
Drying Time 3 - 4 hrs
Maximum Moisture Content 0.04 %
Melt Temperature 305 - 330 °C
Nozzle Temperature 305 - 320 °C
Front - Zone 3 Temperature 315 - 330 °C
Middle - Zone 2 Temperature 305 - 315 °C
Rear - Zone 1 Temperature 290 - 305 °C
Mold Temperature 140 - 160 °C
Back Pressure 0.3 MPa
Source GMD, last updated:11/30/2001
THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294.

(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.
