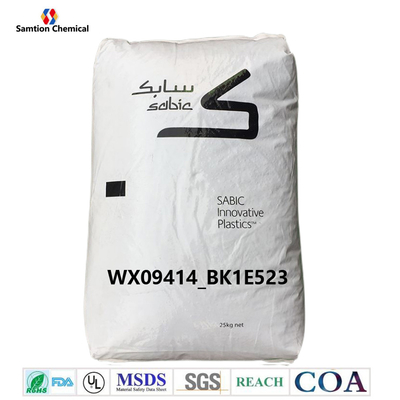

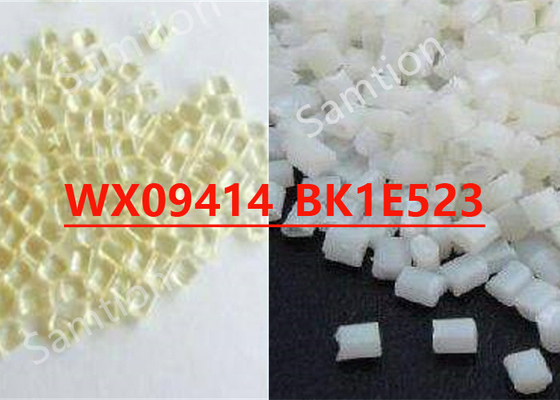

S-Plastics Thermocomp WX09414_BK1E523 resin is a compound based on Thermoplastic Polyester (PBT) containing glass. Characteristics of this grade are ULrated.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 83 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 82 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 5910 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 134 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 126 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5150 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 82 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 81 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.3 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 5650 | MPa | ISO 527 |
| Flexural Stress | 130 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4960 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 688 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 101 | J/m | ASTM D 256 |
| Multiaxial Impact | 3 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 45 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 10 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 212 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 178 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 5.1E-05 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 1.22E-04 | 1/°C | ASTM D 696 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 205 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 142 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.51 | - | ASTM D 792 |
| Density | 1.5 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.5 - 0.7 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.7 - 0.9 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 0.08 | % | ISO 62 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index | 150 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 2 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 2.0 mm | 700 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 30 | % | ISO 4589 |
| Source GMD, last updated:2010/08/16 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 240 - 265 | °C |
| Front - Zone 3 Temperature | 260 - 270 | °C |
| Middle - Zone 2 Temperature | 245 - 255 | °C |
| Rear - Zone 1 Temperature | 220 - 230 | °C |
| Mold Temperature | 80 - 100 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2010/08/16 | ||
