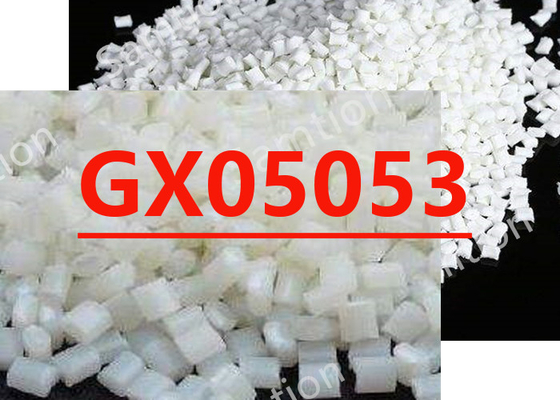

S-Plastics Thermocomp GX05053 resin is a compound based on Polysulfone blend resin containing Glass Fiber.
Property
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 94 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 3.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4700 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 147 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 45 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 166 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow (5) | 0.3 | % | S-Plastics Method |
| Density | 1.3 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2010/02/18 | | |
Processing
Injection Molding Value Unit
Drying Temperature 130 °C
Drying Time 4 hrs
Melt Temperature 290 - 330 °C
Front - Zone 3 Temperature 280 - 320 °C
Middle - Zone 2 Temperature 270 - 310 °C
Rear - Zone 1 Temperature 260 - 300 °C
Mold Temperature 110 - 130 °C
Back Pressure 0.2 - 0.3 MPa
Screw Speed 30 - 60 rpm
Source GMD, last updated:2010/02/18
THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
"(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294."
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.
"(5) Measurements made from laboratory test coupon. Actual shrinkage may vary outside of range due to differences in processing
conditions, equipment, part geometry and tool design. It is recommended that mold shrinkage studies be performed with surrogate or
legacy tooling prior to cutting tools for new molded article."
