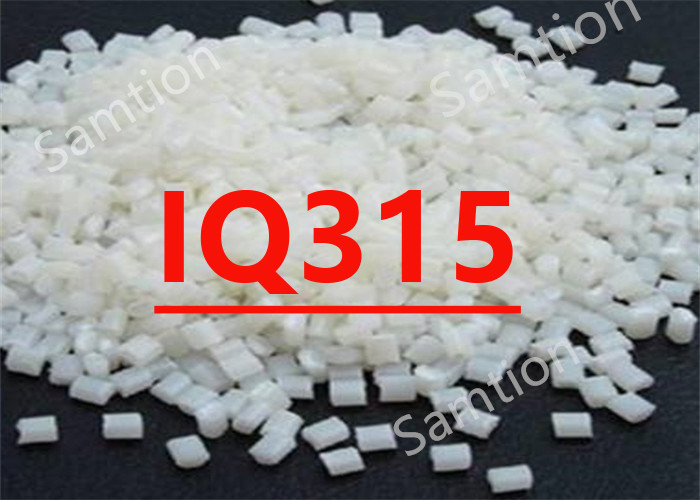

S-Plastics Valox IQ315 resin is Environmentally Sustainable Valox iQ315 resin (ASTM datasheet)
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 54 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 33 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 220 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2770 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 82 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2450 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 0 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 0 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 0 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 0 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 0 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 0 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 0 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2130 | J/m | ASTM D 4812 |
| Izod Impact, unnotched, -30°C | 2130 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 48 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 48 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 64 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 0 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 176 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 100 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 47 | °C | ASTM D 648 |
| Vicat Softening Temp, Rate B/120 | 0 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 0 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 0 | - | ASTM D 792 |
| Melt Flow Rate, 200°C/3.8 kgf | 0 | g/10 min | ASTM D 1238 |
| Density | 0 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 250°C/2.16 kg | 11 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:06/09/2007 | |||
| Parameter | ||
| Compounding Extrusion | Value | Unit |
| Drying Temperature | 110 - 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0 | % |
| Melt Temperature | 245 - 260 | °C |
| Barrel - Zone 1 Temperature | 200 - 230 | °C |
| Barrel - Zone 2 Temperature | 240 - 255 | °C |
| Barrel - Zone 3 Temperature | 240 - 275 | °C |
| Barrel - Zone 4 Temperature | 240 - 275 | °C |
| Adapter Temperature | 240 - 275 | °C |
| Die Temperature | 240 - 275 | °C |
| Waterbath Temperature | 25 - 35 | °C |
| Source GMD, last updated:06/09/2007 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Valox IQ315.pdf |
|
