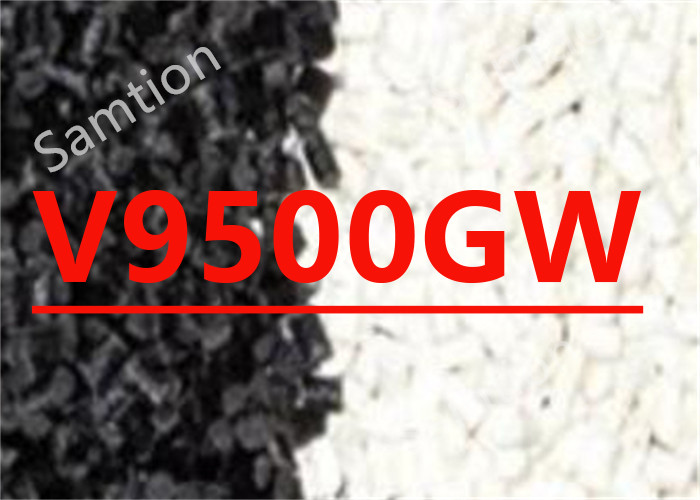

S-Plastics Valox V9500GW resin is Unfilled Flameretardant PET/PC blend for GWIT.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 52 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 54 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 5 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 40 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2700 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 95 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2400 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 8 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, flow | 8.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 130 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 140 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 110 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.4 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.7 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 30 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 0 | mm | UL 94 by GE |
| UL Compliant, 94V-2 Flame Class Rating (3)(4) | 0 | mm | UL 94 by GE |
| UL Compliant, 94V-1 Flame Class Rating (3)(4) | 0 | mm | UL 94 by GE |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1 | mm | UL 94 by GE |
| UL Recognized, 94HB Flame Class Rating (3) | 0 | mm | UL 94 |
| UL Recognized, 94V-2 Flame Class Rating (3) | 0 | mm | UL 94 |
| UL Recognized, 94V-1 Flame Class Rating (3) | 0 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1 | mm | UL 94 |
| Glow Wire Ignitability Temperature, 1.0 mm | 775 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 2.0 mm | 775 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 3.0 mm | 775 | °C | IEC 60695-2-13 |
| Source GMD, last updated:07/05/2007 | |||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Valox V9500GW.pdf |
|
