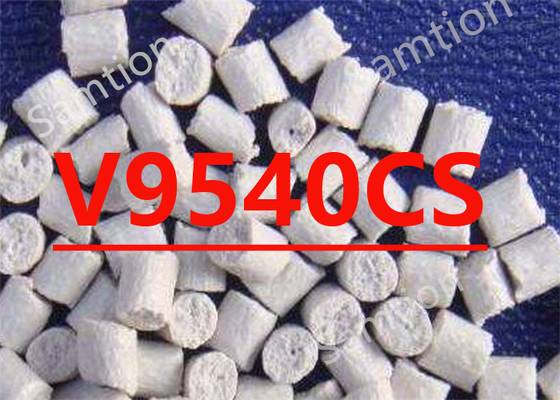

S-Plastics Valox V9540CS resin is a flame retardant, 20% glass filled PET injection moulding resin with good color stability and good heat resistance.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 135 | MPa | ISO 527 |
| Tensile Strain, break, 50 mm/min | 2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9500 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 185 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 8500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 32 | kJ/m² | ISO 180/1U |
| THERMAL | Value | Unit | Standard |
| Ball Pressure Test, 125°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Ball Pressure Test, approximate maximum | 245 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/120 | 230 | °C | ISO 306 |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.2 - 0.4 | % | S-Plastics Method |
| Density | 1.68 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 8 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index | 175 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| Glow Wire Flammability Index 960°C, passes at | 1.6 | mm | IEC 60695-2-12 |
| Source GMD, last updated:05/28/2003 | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 120 - 130 | °C | |
| Drying Time | 4 - 6 | hrs | |
| Maximum Moisture Content | 0.02 | % | |
| Melt Temperature | 270 - 290 | °C | |
| Nozzle Temperature | 260 - 280 | °C | |
| Front - Zone 3 Temperature | 270 - 290 | °C | |
| Middle - Zone 2 Temperature | 260 - 280 | °C | |
| Rear - Zone 1 Temperature | 250 - 270 | °C | |
| Hopper Temperature | 40 - 60 | °C | |
| Mold Temperature | 90 - 120 | °C | |
| Source GMD, last updated:05/28/2003 | |||
| THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES. | |||
| PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION | |||
| (1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded samples. All samples tested under ISO test standards are prepared according to ISO 294. |
|||
| (2) Only typical data for selection purposes. Not to be used for part or tool design. | |||
| (3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions. | |||
| (4) Internal measurements according to UL standards. | |||
