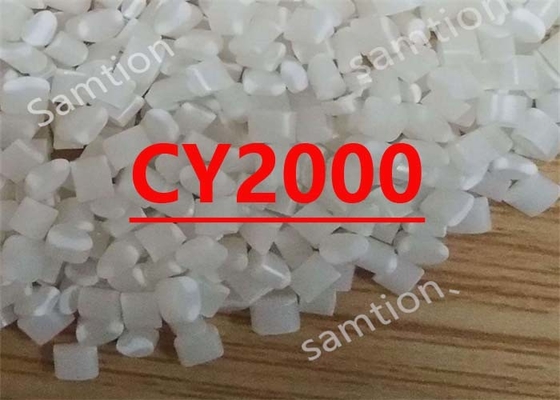

S-Plastics Cycoloy CY2000 resin is Cycoloy resin CY2000 is a flame retardant (FR) PC/ABS blend free from halogen containing FR agents. It was designed to meet CA133 application requirements.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 63 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 99 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2860 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 99 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2770 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 447 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 89 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 63 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 92 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 78 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 6.17E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.09E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.18 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.44 - 0.54 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/2.16 kgf | 21 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:12/04/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 80 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 230 - 275 | °C |
| Nozzle Temperature | 230 - 275 | °C |
| Front - Zone 3 Temperature | 225 - 275 | °C |
| Middle - Zone 2 Temperature | 215 - 260 | °C |
| Rear - Zone 1 Temperature | 210 - 255 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:12/04/2007 | ||
|
