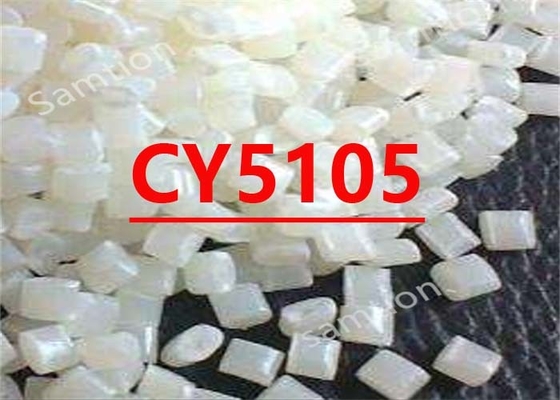

S-Plastics Cycoloy CY5105 resin is Flame retardant PC/ABS blend using non-brominated and non-chlorinated flame retardant systems, offering excellent flow / impact balance for large size applications
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 47 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4.1 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 55 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2750 | MPa | ASTM D 638 |
| Tensile Stress, yield, 50 mm/min | 62 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 46 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 35 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2750 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 94 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2450 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 350 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 75 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*3 +23°C | 30 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 8 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 30 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 7 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 22 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 8.E+00 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 8.E+00 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 104 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 105 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 87 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.18 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.6 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Melt Volume Rate, MVR at 260°C/2.16 kg | 23 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
| Volume Resistivity | 1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | 1.E+15 | Ohm | IEC 60093 |
| Relative Permittivity, 50/60 Hz | 2.9 | - | IEC 60250 |
| Dissipation Factor, 1 MHz | 0.007 | - | IEC 60250 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 2 | mm | UL 94 |
| Oxygen Index (LOI) | 31 | % | ISO 4589 |
| Source GMD, last updated:03/22/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 300 | °C |
| Nozzle Temperature | 250 - 300 | °C |
| Front - Zone 3 Temperature | 250 - 300 | °C |
| Middle - Zone 2 Temperature | 240 - 290 | °C |
| Rear - Zone 1 Temperature | 230 - 280 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 60 - 85 | °C |
| Vent Depth | 0.03 - 0.075 | mm |
| Source GMD, last updated:03/22/2008 | ||
