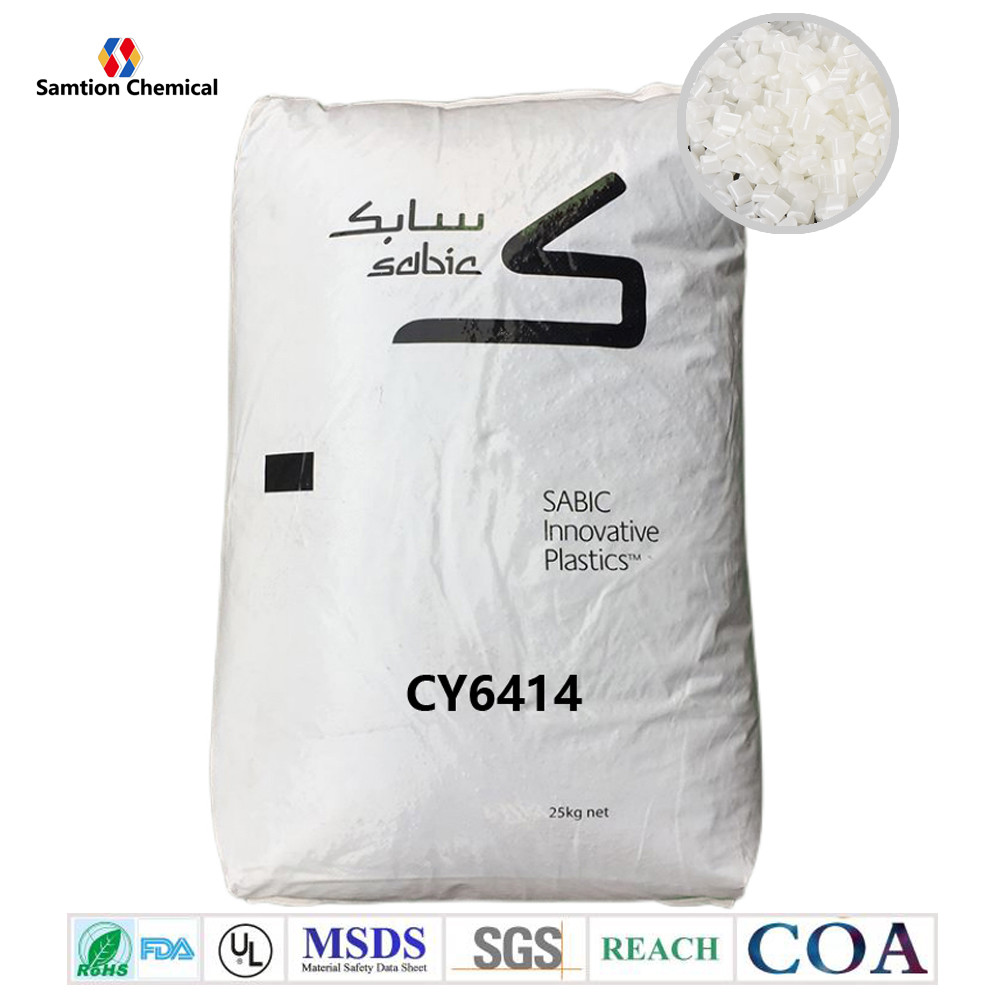

S-Plastics Cycoloy CY6414 resin is Non-Brominated Non-Chlorinated flame retardant systems, applied in electrical appliances, lighting and electrical markets
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 64 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 85 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2330 | MPa | ASTM D 638 |
| Tensile Stress, yield, 50 mm/min | 66 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 67 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 5.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | >100 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2420 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 96 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2470 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 795 | J/m | ASTM D 256 |
| Izod Impact, notched, 0°C | 525 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 215 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*3 +23°C | 52 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 0°C | 14 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 12 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 28 | kJ/m² | ISO 179/1eA |
| Charpy 0°C, V-notch Edgew 80*10*3 sp=62mm | 17 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 12 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 118 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | Pass | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 133 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 134 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 116 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Density | 1.18 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.3 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.1 | % | ISO 62 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 13 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Relative Permittivity, 1 kHz | 3 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 2.94 | - | ASTM D 150 |
| Dissipation Factor, 1 kHz | 0.0016 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.0088 | - | ASTM D 150 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 1 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
| Surface Resistivity, ROA | 4.E+16 - 0.E+00 | Ohm | IEC 60093 |
| Dissipation Factor, 1 MHz | 0.0088 | - | IEC 60250 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.2 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 900 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 2.0 mm | 850 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 3.0 mm | 800 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 32 | % | ISO 4589 |
| Source GMD, last updated:04/30/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 300 | °C |
| Nozzle Temperature | 230 - 290 | °C |
| Front - Zone 3 Temperature | 240 - 300 | °C |
| Middle - Zone 2 Temperature | 230 - 290 | °C |
| Rear - Zone 1 Temperature | 210 - 260 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 60 - 90 | °C |
| Source GMD, last updated:04/30/2008 | ||
