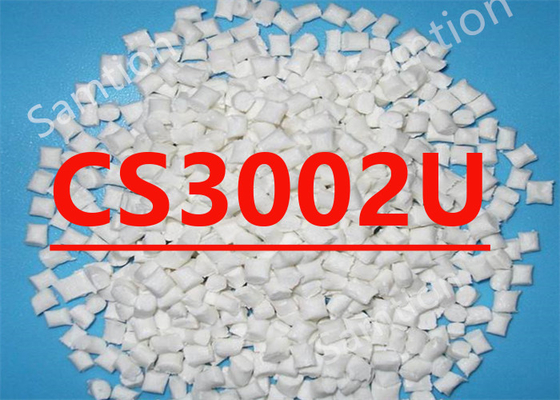

S-Plastics Valox CS3002Uresin is Unfilled, UV and colour stable, general purpose release grade polyester.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 56 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 60 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 88 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2420 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 48 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 183 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 58 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.33 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 1.7 - 2.3 | % | S-Plastics Method |
| Source GMD, last updated:06/18/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Melt Temperature | 235 - 265 | °C |
| Mold Temperature | 45 - 60 | °C |
| Source GMD, last updated:06/18/1999 | ||
