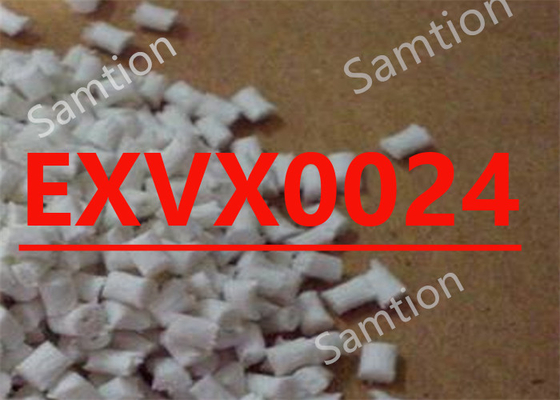

S-Plastics Valox EXVX0024resin is Will be commercialized as 830HV. 30% GR Polyester, higher viscosity than 830, excellent surface finish. Typical applications: hot air andindustrial glue guns, appliance housings
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 124 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 124 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.3 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 9920 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 172 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 6890 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 854 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 85 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 102 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 210 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 182 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.62E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 4.68E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.55 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 265°C/2.16kg | 13 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:03/12/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 265 | °C |
| Nozzle Temperature | 245 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 265 | °C |
| Middle - Zone 2 Temperature | 245 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 255 | °C |
| Mold Temperature | 65 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:03/12/2003 | ||
