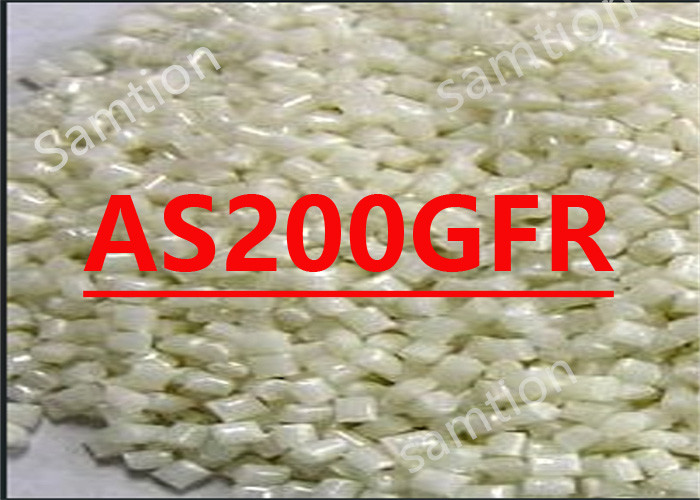

S-Plastics Cycolac AS200GFR resin is 20% glass filled, impact modified grade of ABS.
| Property | |||
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 96 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 127 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5330 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 80 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 97 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 100 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.17 | - | ASTM D 792 |
| Melt Flow Rate, 230°C/5 kgf | 0 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:06/18/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Melt Temperature | 245 - 265 | °C |
| Mold Temperature | 60 - 80 | °C |
| Source GMD, last updated:06/18/1999 | ||
