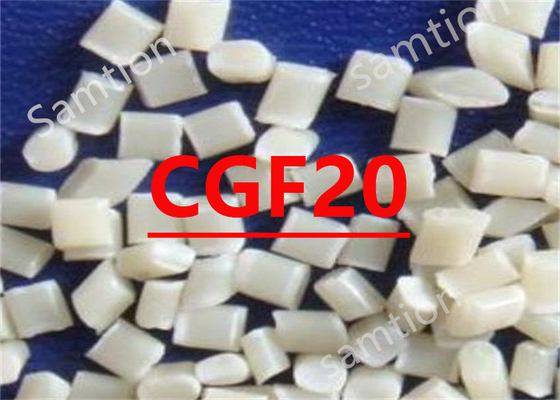

S-Plastics Cycolac CGF20 resin is 20% glass filled ABS. High flow. Business machines, copier housings.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 82 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 82 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.5 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 6610 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 117 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 6550 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 224 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 103 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 98 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 3.6E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 8.82E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.26 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.2 - 0.4 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 8.1 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:02/18/1998 |
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 80 - 95 | °C | |
| Drying Time | 2 - 4 | hrs | |
| Drying Time (Cumulative) | 8 | hrs | |
| Maximum Moisture Content | 0.01 | % | |
| Melt Temperature | 230 - 260 | °C | |
| Nozzle Temperature | 230 - 260 | °C | |
| Front - Zone 3 Temperature | 225 - 245 | °C | |
| Middle - Zone 2 Temperature | 210 - 225 | °C |
