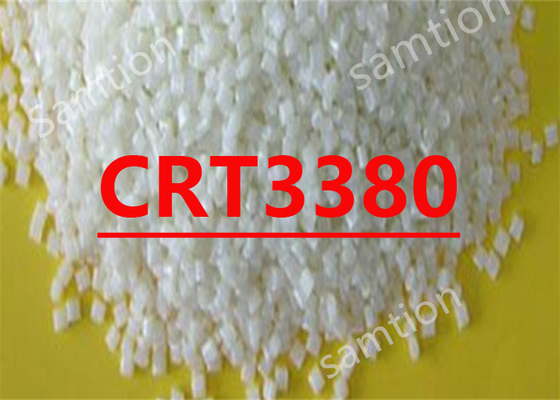

S-Plastics Cycolac CRT3380 resin is is a 20% glass reinforced injection moulding grade of ABS. It exhibits high rigidity and excellent dimensional stability
combined with medium/high heat performance and good flow charasteristics, particularly suited for complex applications where modulus
and stability are important such as instrument panels and other automotive parts.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Flexural Stress, yield, 2 mm/min | 82 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5500 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Thermal Conductivity | 0.2 | W/m-°C | ISO 8302 |
| CTE, 23°C to 60°C, flow | 4.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.2 - 0.4 | % | S-Plastics Method |
| Density | 1.2 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 8 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+15 | Ohm | IEC 60093 |
| Source GMD, last updated:11/20/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 85 - 95 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.1 | % |
| Melt Temperature | 230 - 260 | °C |
| Nozzle Temperature | 220 - 250 | °C |
| Front - Zone 3 Temperature | 230 - 260 | °C |
| Middle - Zone 2 Temperature | 230 - 260 | °C |
| Rear - Zone 1 Temperature | 220 - 250 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 40 - 80 | °C |
| Source GMD, last updated:11/20/2001 | ||
