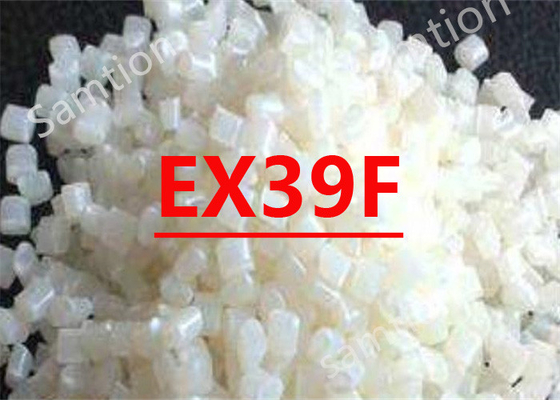

S-Plastics Cycolac EX39F resin is Highest impact extrusion ABS for sheet and blow molding applications. FDA food contact compliant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 28 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 3.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 108 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1680 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 57 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1900 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 464 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 320 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 39 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 91 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 77 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.01E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.17E-04 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.03 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.7 - 0.9 | % | S-Plastics Method |
| Melt Viscosity, 240°C, 100 sec-1 | 15200 | poise | ASTM D 3825 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 4 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.52 | mm | UL 94 |
| Source GMD, last updated:04/18/2002 | |||
| Parameter | ||
| Extrusion Blow Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 5 - 4 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 - 0.04 | % |
| Minimum Moisture Content | 0.04 | % |
| Melt Temperature (Parison) | 210 - 225 | °C |
| Barrel - Zone 1 Temperature | 190 - 220 | °C |
| Barrel - Zone 2 Temperature | 190 - 220 | °C |
| Barrel - Zone 3 Temperature | 190 - 220 | °C |
| Barrel - Zone 4 Temperature | 190 - 220 | °C |
| Adapter - Zone 5 Temperature | 195 - 220 | °C |
| Head - Zone 6 - Top Temperature | 195 - 220 | °C |
| Head - Zone 7 - Bottom Temperature | 195 - 220 | °C |
| Screw Speed | 20 - 60 | rpm |
| Extruder Feed Zone Temperature | 60 - 80 | °C |
| Mold Temperature | 40 - 90 | °C |
| Die Temperature | 195 - 220 | °C |
