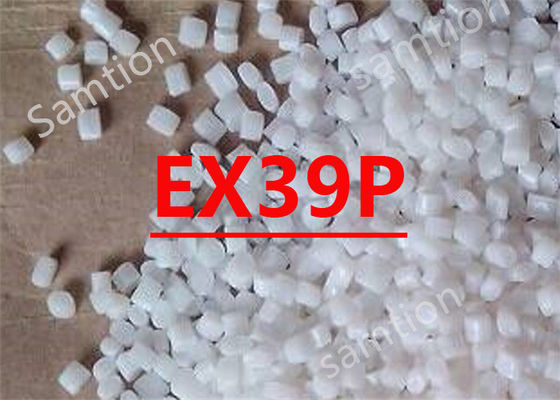

S-Plastics Cycolac EX39P resin is High impact pipe extrusion ABS for drain, waste, and vent applications. Meets NSF/CSA cell class 42221
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 30 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 3.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 90 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1730 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 59 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1990 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 32 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 24 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3.1 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 37.4 | % | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 46 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1460 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 459 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 309 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 41 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 32 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 21 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 29 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 93 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 80 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.1E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.19E-04 | 1/°C | ASTM E 831 |
| Vicat Softening Temp, Rate B/50 | 86 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 89 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 74 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.03 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm (5) | 0.5 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 0.5 | g/10 min | ASTM D 1238 |
| Density | 1.03 | g/cm³ | ISO 1183 |
| Source GMD, last updated:2010/02/25 | |||
| • Recommend initial lower temperatures settings to avoid material degradation/hang-up in die. | ||
| Parameter | ||
| Sheet Extrusion | Value | Unit |
| Drying Temperature | 80 - 95 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 215 - 260 | °C |
| Barrel - Zone 1 Temperature | 170 - 200 | °C |
| Barrel - Zone 2 Temperature | 180 - 220 | °C |
| Barrel - Zone 3 Temperature | 190 - 225 | °C |
| Barrel - Zone 4 Temperature | 200 - 240 | °C |
| Adapter Temperature | 205 - 250 | °C |
| Die Temperature | 205 - 250 | °C |
| Roll Stack Temp - Top | 90 - 95 | °C |
| Roll Stack Temp - Middle | 95 - 105 | °C |
| Roll Stack Temp - Bottom | 100 - 105 | °C |
| Source GMD, last updated:2010/02/25 | ||
