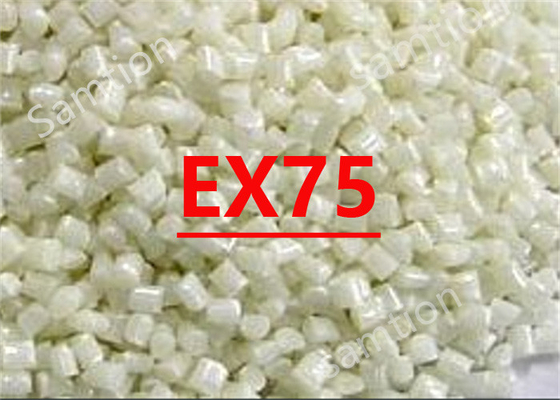

S-Plastics Cycolac EX75 resin is Multi-purpose, extrusion ABS providing a favorable balance of engineering properties.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 39 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 33 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 42.9 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2130 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 73 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2400 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 421 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 35 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 94 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 82 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.92E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 8.1E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.04 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Viscosity, 240°C, 100 sec-1 | 11600 | poise | ASTM D 3825 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 9 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:01/09/2002 | |||
| Parameter | ||
| Sheet Extrusion | Value | Unit |
| Drying Temperature | 90 - 95 | °C |
| Drying Time (Cumulative) | 4 | hrs |
| Maximum Moisture Content | 0 | % |
| Melt Temperature | 200 - 220 | °C |
| Barrel - Zone 1 Temperature | 170 - 190 | °C |
| Barrel - Zone 2 Temperature | 180 - 200 | °C |
| Barrel - Zone 3 Temperature | 175 - 205 | °C |
| Barrel - Zone 4 Temperature | 180 - 210 | °C |
| Adapter Temperature | 180 - 205 | °C |
| Die Temperature | 180 - 215 | °C |
| Source GMD, last updated:01/09/2002 | ||
